3D-Printed Microreactors

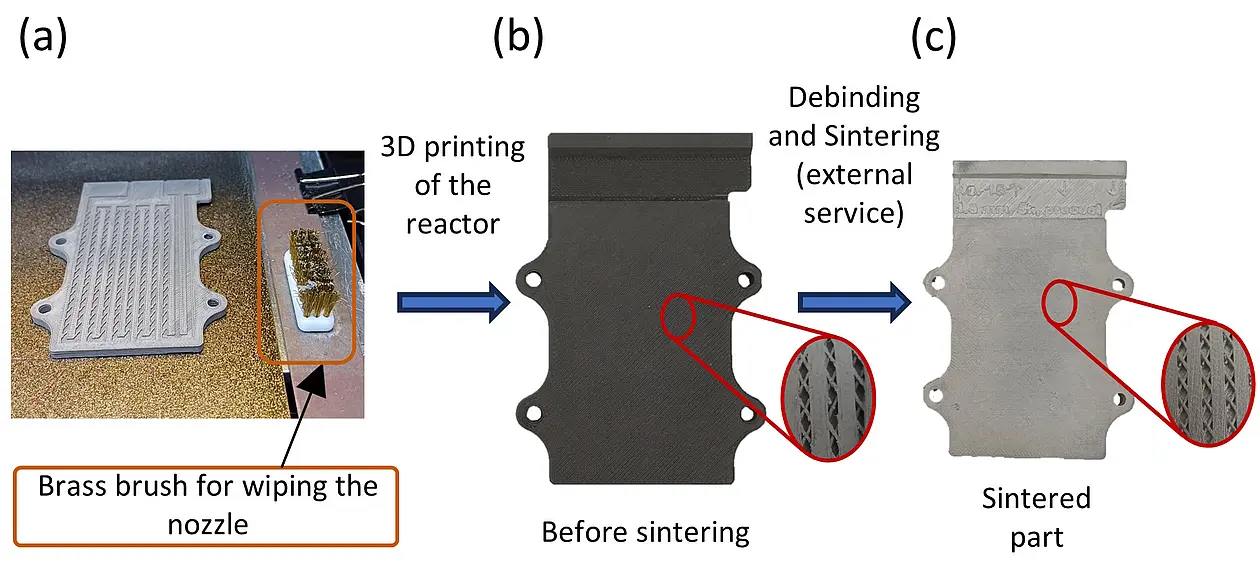

3D-printed microreactor made of stainless steel

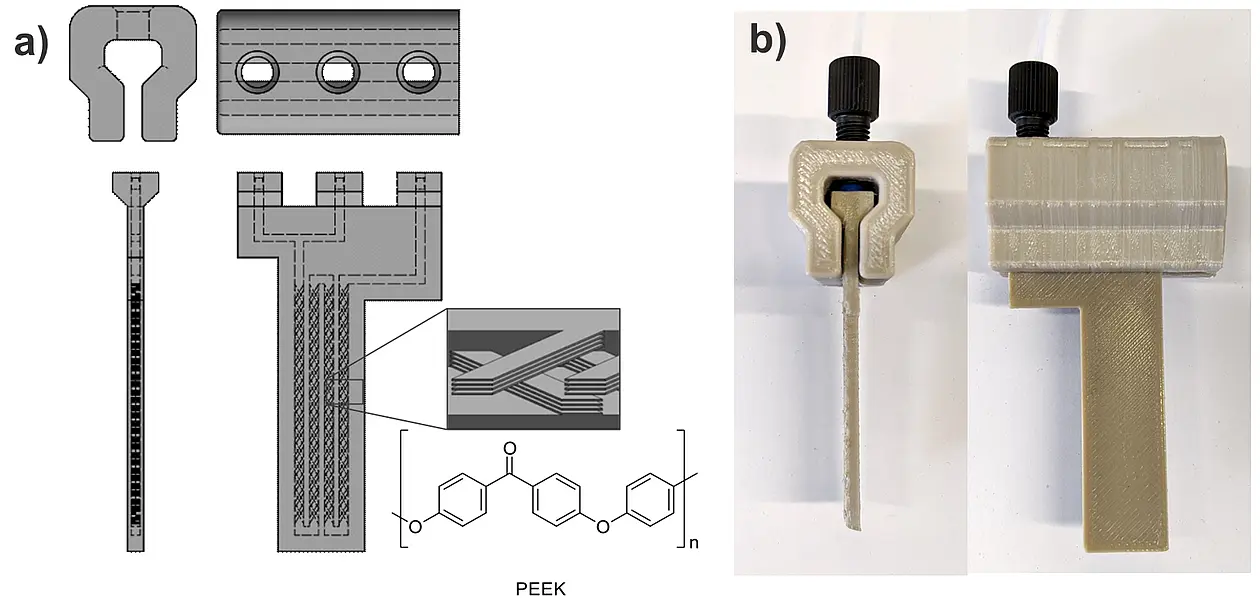

3D-printed microreactor made of PEEK (polyether ether ketone)

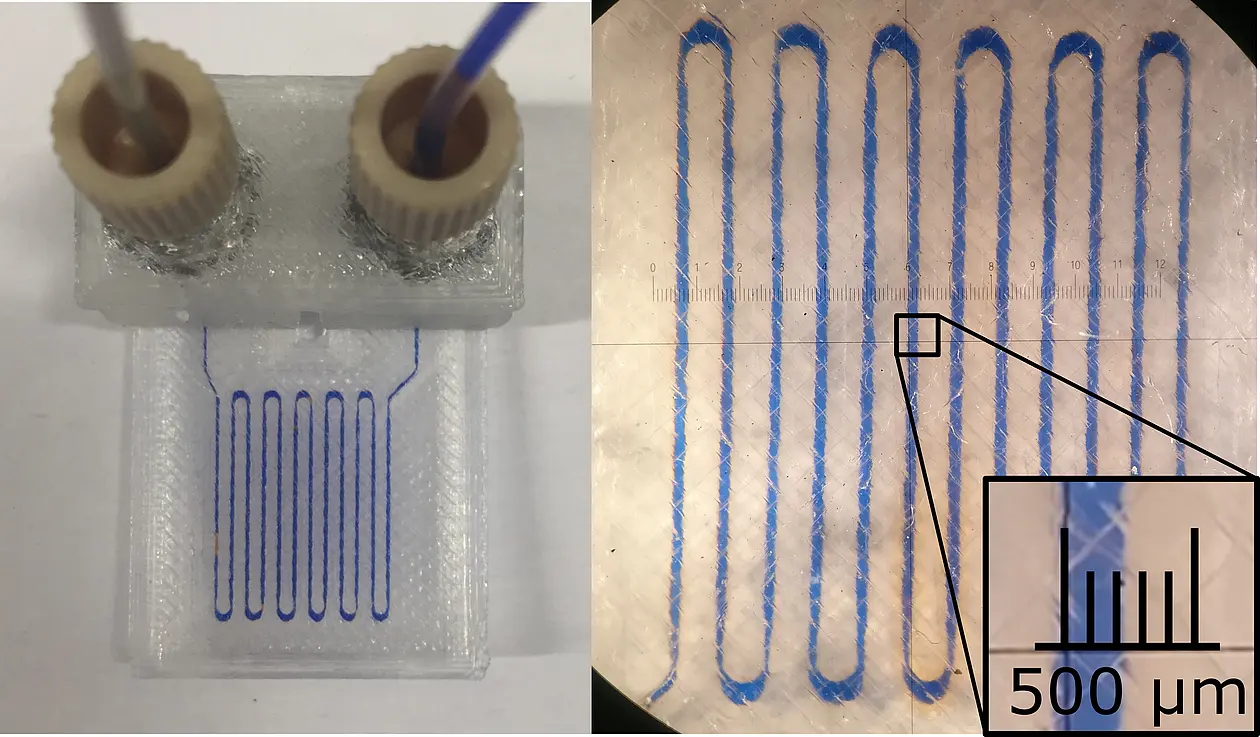

3D-printed microreactor made of PP (polypropylene)

FOMSy - A 3D-Printed Flexible Open-Source Microfluidic System

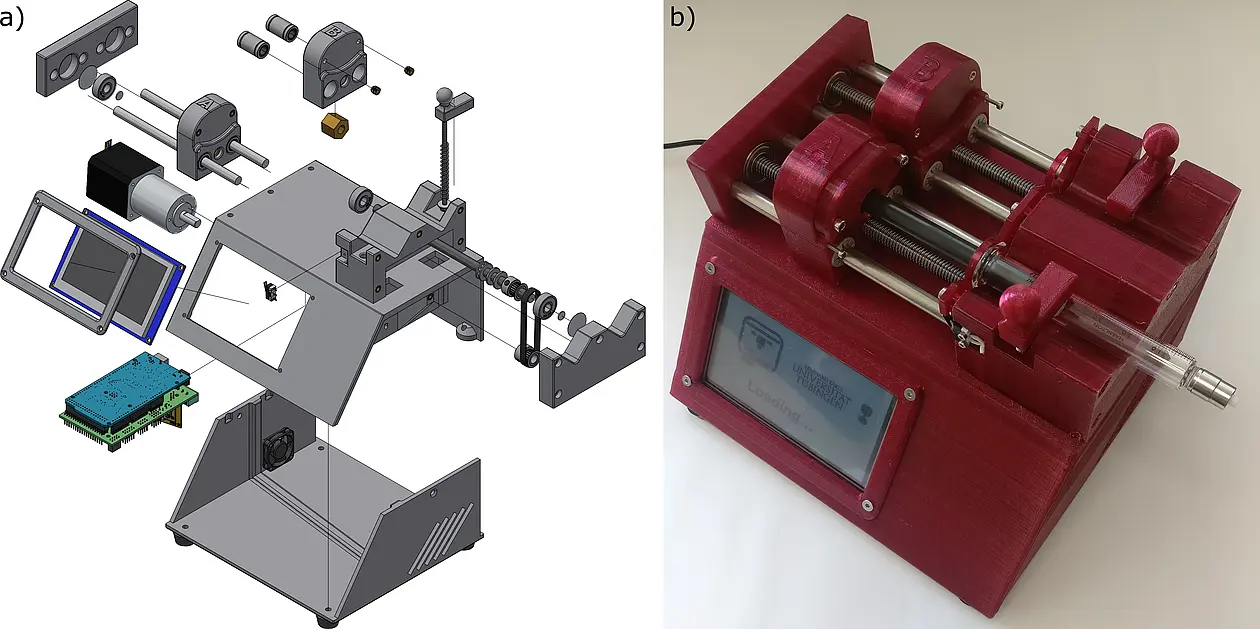

FOMSy - 3D printed syringe pump with two individually programmable channels

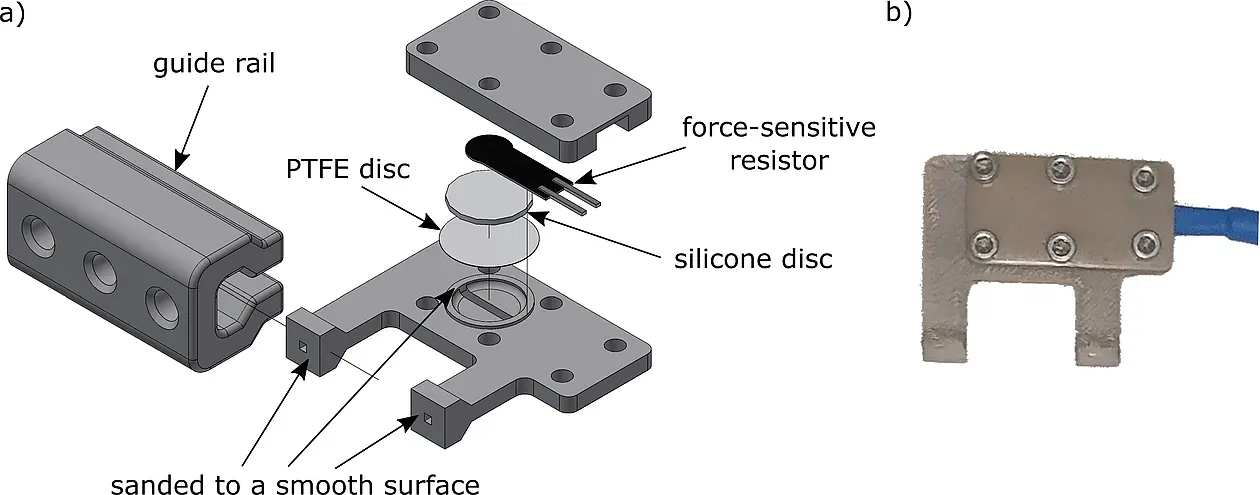

FOMSy - pressure sensor

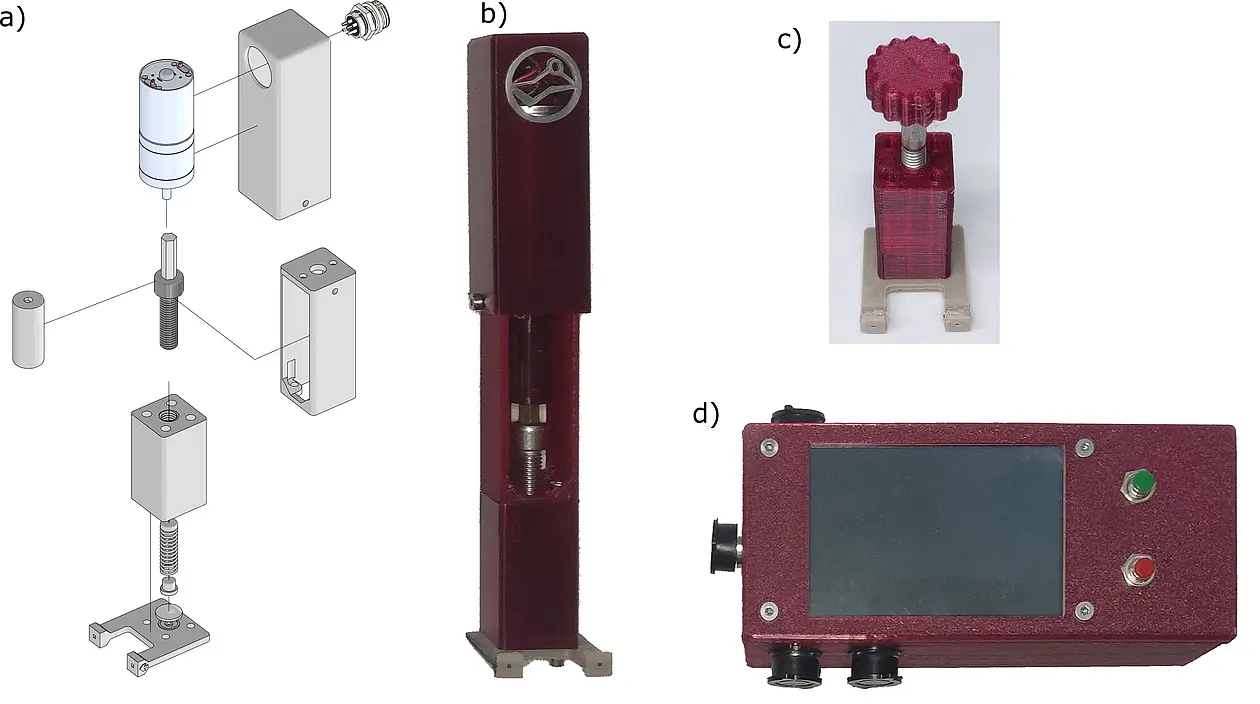

FOMSy - motor-controlled BPR (back pressure regulator) + control unit

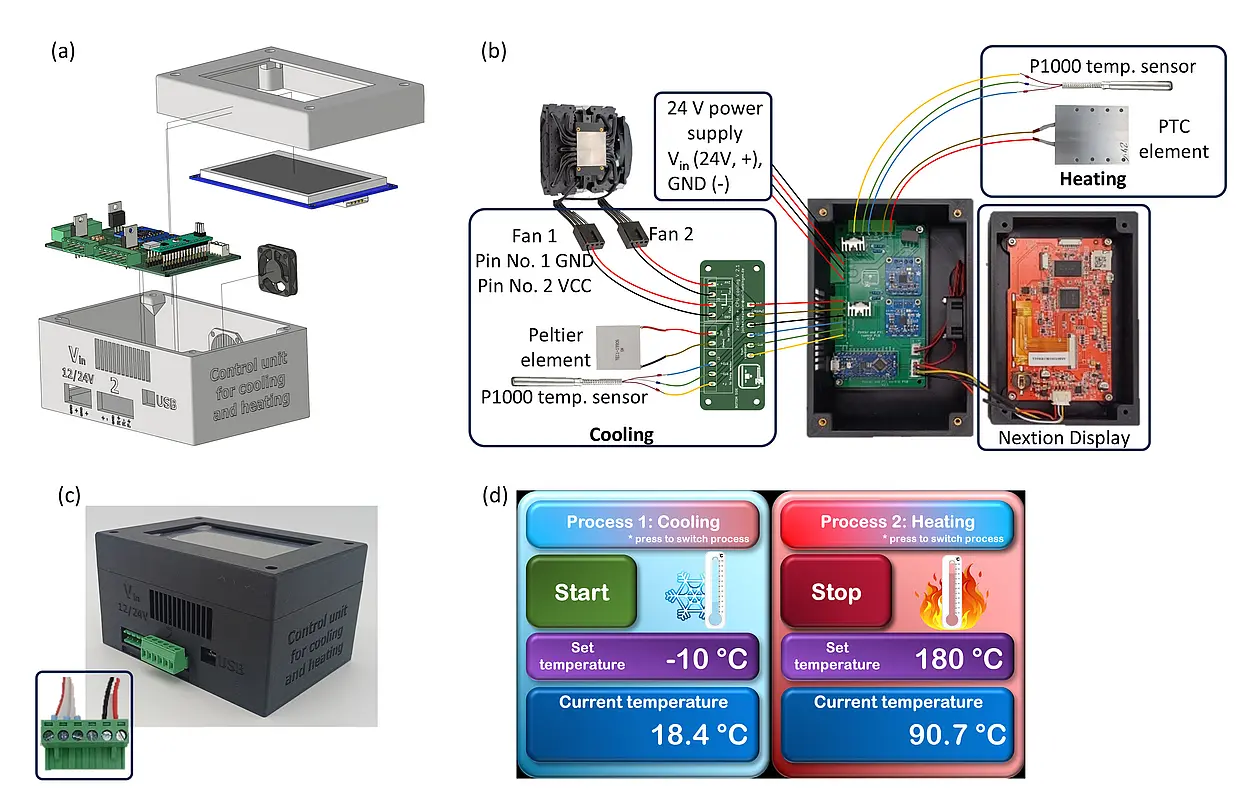

Controller for direct heating (up to 200 °C) and cooling (–20 °C)

Automated Spotting Device for TLC

https://youtu.be/EtyhCh5jD4k

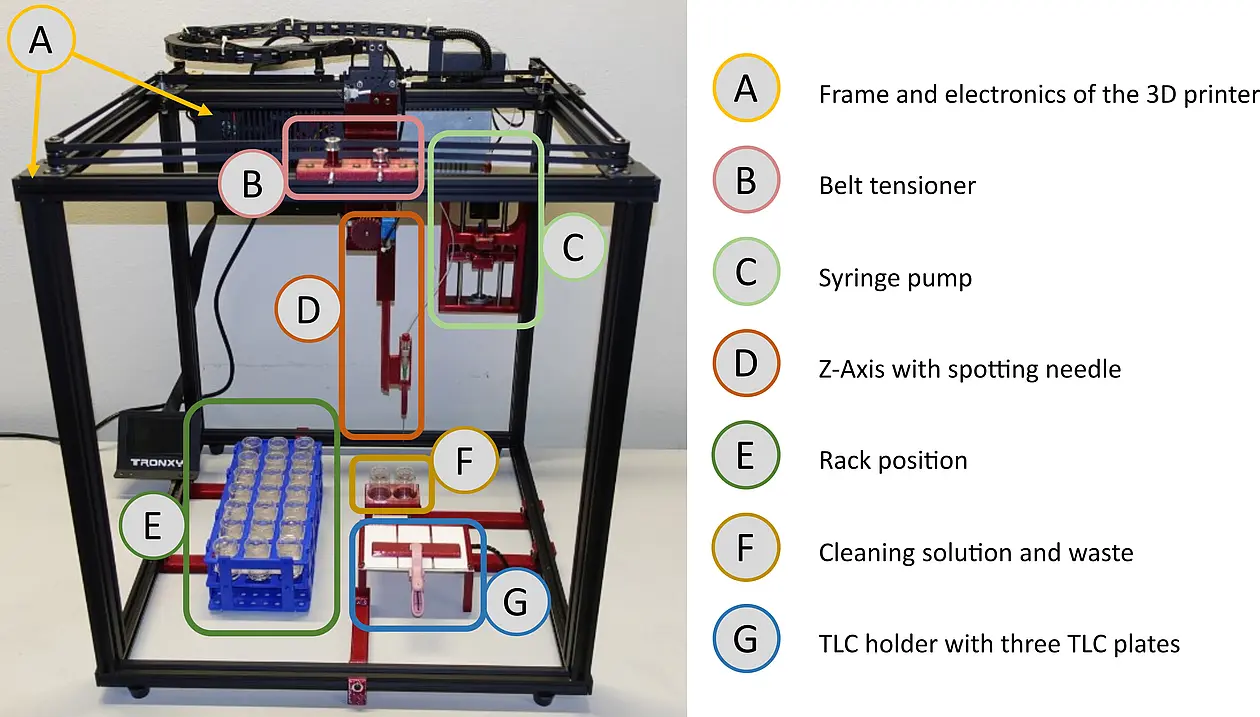

Automated Spotting Device for TLC
Fully Automated Spotting Device for Thin-Layer Chromatography based on the Modification of a 3D Printer

Additional Open-Source Equipment

Membran Separator

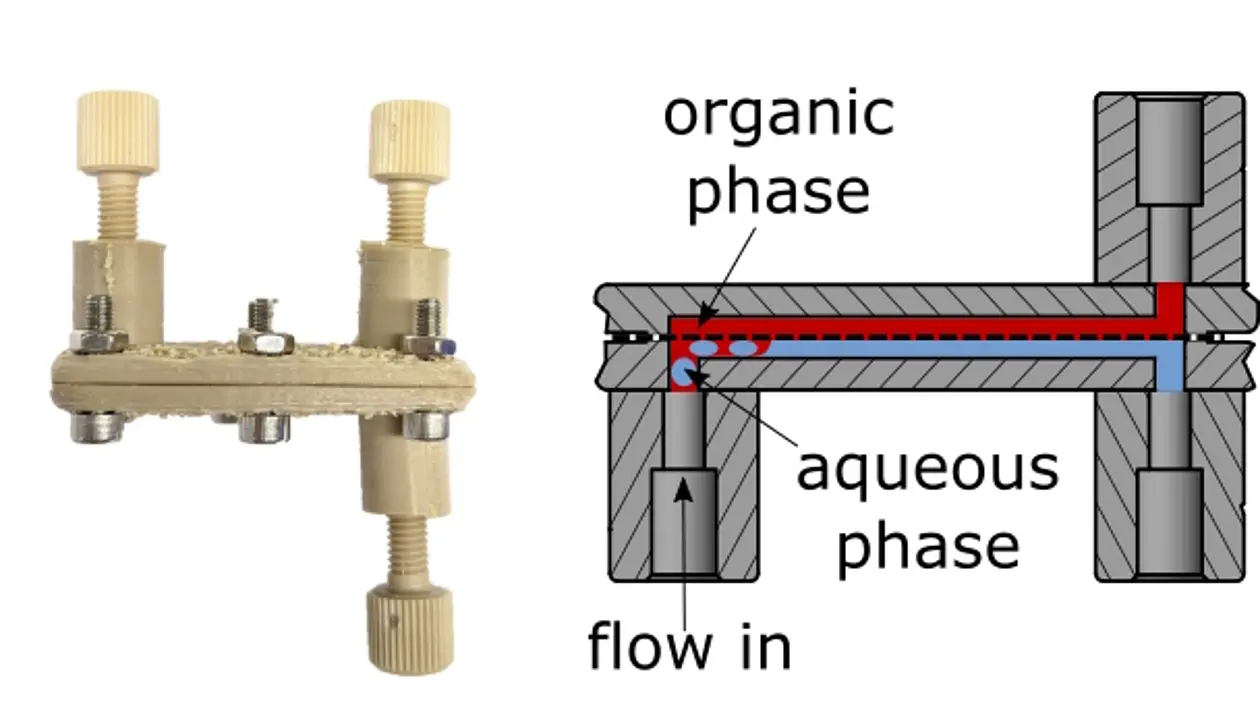

Membrane separator made of PEEK for continuous separation of aqueous and organic phase
Continuous syringe pump

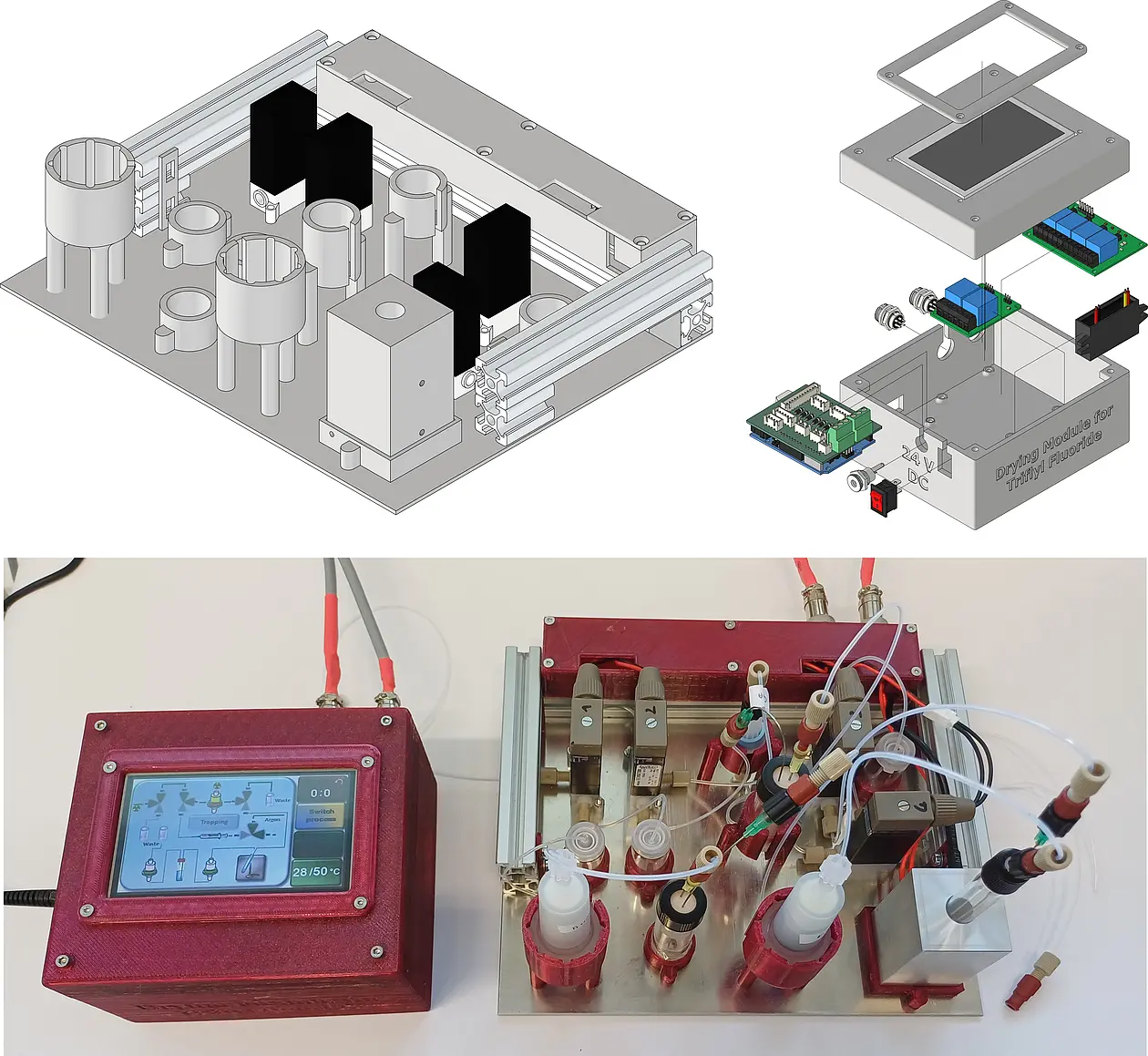

Automated drying module for [18F]fluoride
