Tetrahedra of Varying Density and their Applications

Dennis R. Bukenberger and Hendrik P. A. Lensch

(Department of Computer Graphics, Eberhard Karls University, Tübingen, Germany)

Published in: The Visual Computer
DOI: 10.1007/s00371-021-02189-0

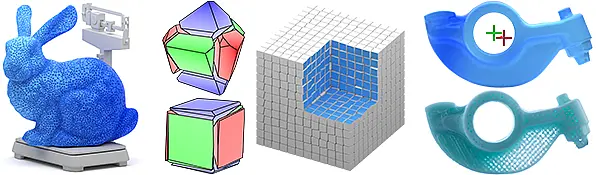

We propose concepts to utilize basic mathematical principles for computing the exact mass properties of objects with varying densities. For objects given as 3D triangle meshes the method is analytically accurate and at the same time faster than any established approximation method. Our concept is based on tetrahedra as underlying primitives, which allows for the object’s actual mesh surface to be incorporated in the computation. The density within a tetrahedron is allowed to vary linearly, i.e., arbitrary density fields can be approximated by specifying the density at all vertices of a tetrahedral mesh. Involved integrals are formulated in closed-form and can be evaluated by simple, easily parallelized, vector-matrix multiplications. The ability to compute exact masses and centroids for objects of varying density enables novel or more exact solutions to several interesting problems: besides the accurate analysis of objects under given density fields, this includes the synthesis of parameterized density functions for the make-it-stand challenge or manufacturing of objects with controlled rotational inertia. In addition, based on the tetrahedralization of Voronoi cells we introduce a precise method to solve L_2|∞ Lloyd relaxations by exact integration of the Chebyshev norm. In the context of additive manufacturing research, objects of varying density are a prominent topic. However, current state-of-the-art algorithms are still based on voxelizations, which produce rather crude approximations of masses and mass centers of 3D objects. Many existing frameworks will benefit by replacing approximations with fast and exact calculations.
