Institut für Organische Chemie

Phthalocyanines for Optical Limiting -

Indium(III) and Titanium (IV) Complexes

Optical limiters have a transmission that varies with the incident intensity of light. The transmission is high at normal light intensities and low for intense beams. Ideally, this intensity dependent transmission can limit the transmitted light intensity so that it is always below some maximum value, hence the name. This is useful to protect elements that are sensitive to sudden high-intensity light, such as optical elements, sensors and the human eye. All-optical devices possess an enormous advantage over mechanical or electro-optical devices since they can provide the response speeds that are required for such applications. A device with a slow response time would be useless for protecting optical elements because the reduction of transmission would occur after the device is damaged. Thus the better optical limiting materials usually rely on a third-order or pseudo-third-order response, such as nonlinear absorption or refraction. A nonlinear absorption where the material's absorbance increases with the intensity of the incident light is obviously useful for optical limiting.


One mechanism that has been especially effective at producing large nonlinear absorption is a sequential two-photon absorption. A simple energy level diagram where this process can occur is shown in Figure 1.

In the case when the incident light is sufficiently intense so that a significant population accumulates in the excited state and if the material has an excited state absorption cross section sex that is larger than the ground state cross section s0, the effective absorption coefficient of the material increases. To achieve the largest nonlinear absorption, both a large excited state absorption cross section and a long excited state lifetime are required. When the lifetime of the excited state being pumped is longer than the pulse width of the incident light, the changes in the absorbance and the refractive index are fluence (J/cm2), not intensity (W/cm2) dependent. Thus, in materials with long upper state lifetimes, it is the fluence rather than the intensity that is limited. Limiting the fluence is usually desirable, since damage to optical devices is also often fluence dependent. This sequential two-photon absorption process has also been called reverse saturable absorption (RSA) or excited state absorption.


Some criteria necessary for a large, positive nonlinear absorption are apparent including a large excited state cross section sigma(ex) and a large difference between the ground and excited state absorption cross sections (sigma(ex) - sigma(0)). A variety of organic and organometallic materials have been found to fulfil these conditions. Materials known to possess a positive nonlinear absorption in the visible besides phthalocyanines include porphyrins, organometallic cluster compounds [18-23], and other materials.


The condition that sigma(ex) is greater than sigma(0) is necessary, but it is not sufficient for a useful optical limiting material. A practical optical limiter must operate over the wide range of incident intensities that might be encountered. The nonlinear response should possess a low threshold and remain large over a large range of fluences before the nonlinearity saturates. A high saturation fluence normally requires a high concentration of the nonlinear material in the optical beam. For an organic material, this means it is highly soluble in common organic solvents, or it is a pure liquid or a solid film that can be prepared with good optical quality.


Many of the dyes used as nonlinear absorbers tend to aggregate at high concentration. The intermolecular interactions caused by aggregation are often deleterious. Extensive aggregation needs to be suppressed by modification of the molecular shape and electronic effects, to suppress the Van-der-Waals interaction between the large pi-systems. In addition, the material must possess a high linear transmission and a large nonlinear absorption over a broad spectral bandwidth as well as a high threshold for damage. Furthermore, the nonlinear absorption must appear with a sub-nanosecond response time. Meeting all these criteria is a significant chemical challenge in synthesis.

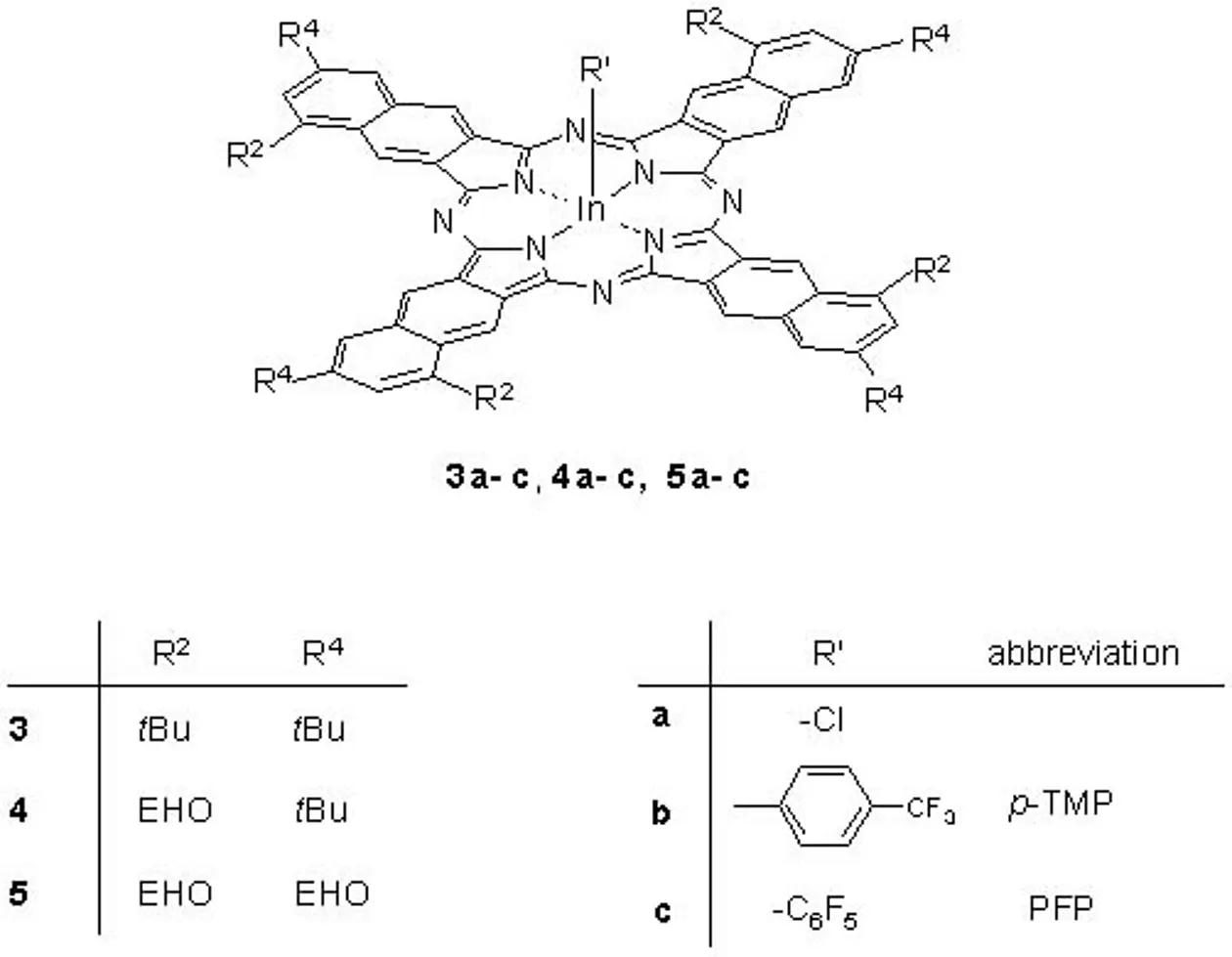

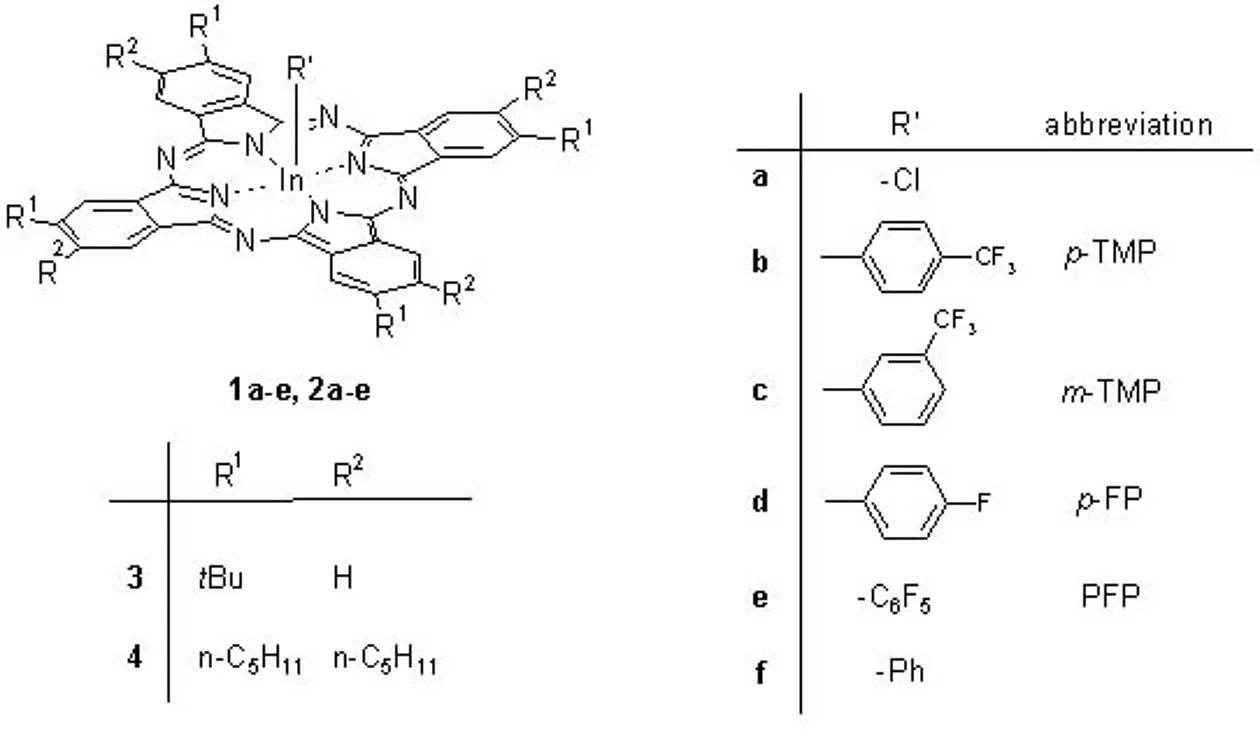

We developed different strategies to synthesize indium(III) and titanium(IV) phthalo- and naphthalocyanines suitable as optical limiting materials.

For further details, please look for the following publications:

Heino Heckmann, Ph.D. Thesis, Universität Tübingen 1999

J. S. Shirk, R. G. S. Pong, S. R. Flom, H. Heckmann, and M. Hanack
Effect of Axial Substitution on the Optical Limiting Properties of Indium Phthalocyanines.
J. Phys. Chem. A 2000, 104, 1438-1449

M. Hanack und H. Heckmann
Soluble Chloro- und Aryl(phthalocyaninato)indium(III) Complexes: Synthesis and Characterization.
Eur. J. Inorg. Chem. 1998, 367-373

Thorsten Schneider, Ph.D. Thesis, Universität Tübingen 2000

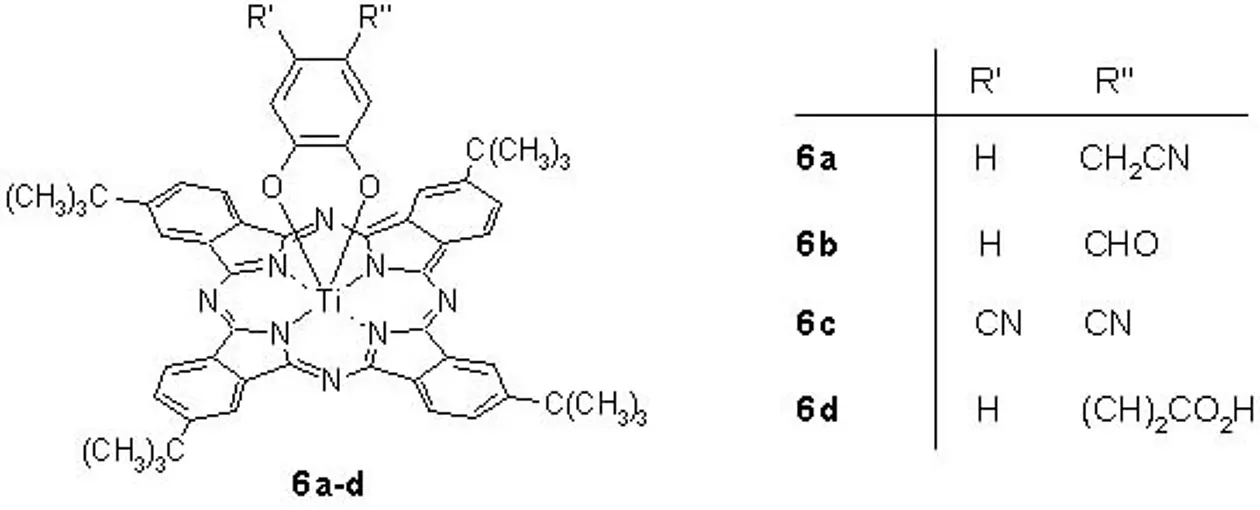

Additionally, we prepared axially substituted titaium(IV) phthalocyanines.
